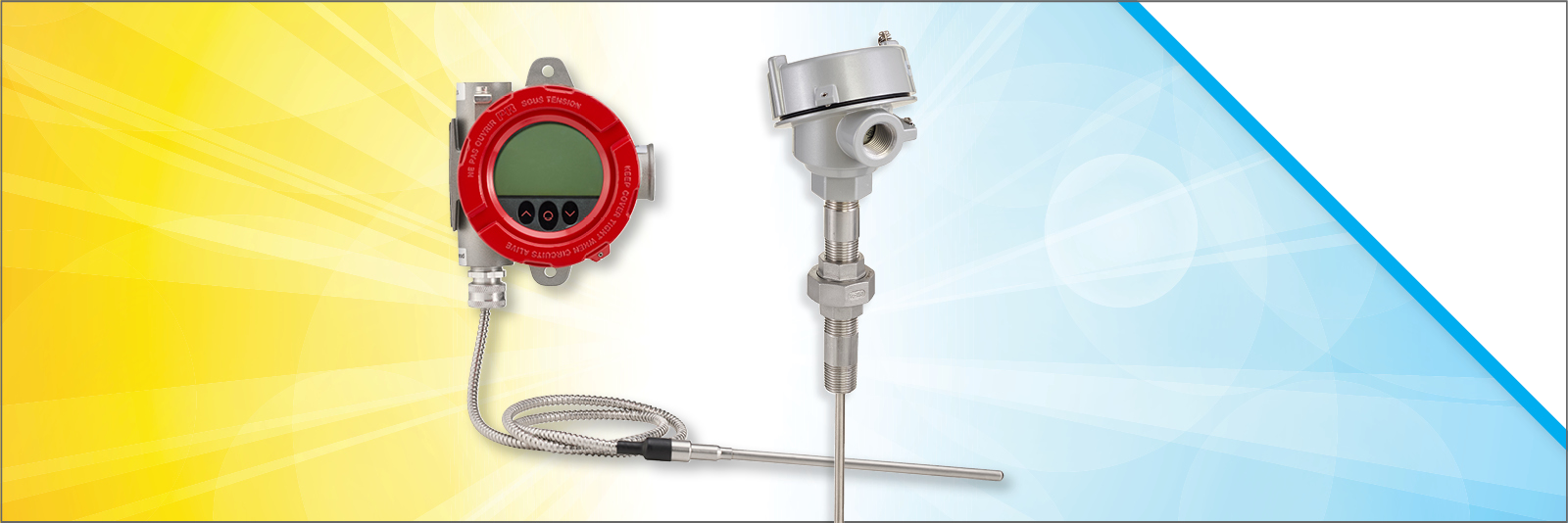

Product Review: New RTDs and Thermocouples

RTD | thermocouple

Not every application is the same, so you need to get the right equipment for your specific needs. When it comes to temperature measurement, inaccurate readings can severely impact your process.

So, how can you ensure you are correctly and reliably monitoring temperature?

Ashcroft has just released a new line of custom RTDs and thermocouples. Whether your application is for light-industrial temperature measurements or critical heavy-duty installations, our wide range of reliable RTD and thermocouple probes are custom-configured to meet your specific application requirements.

This article will detail several of the new probes, their features and specifications and for which applications they work best.

Important Features

With a broad selection of connections, stems, lags and thermowells, Ashcroft Types S50, S80 & S81 RTD and thermocouple probes can be custom configured to meet the specifications of nearly any EPC or large project requirement.

Intrinsically safe and explosion-proof versions for use in hazardous locations include FM approval. A terminal block and a variety of heads accommodate a choice of direct wiring or the addition of a 4-20 mA output transmitter.

Specifications

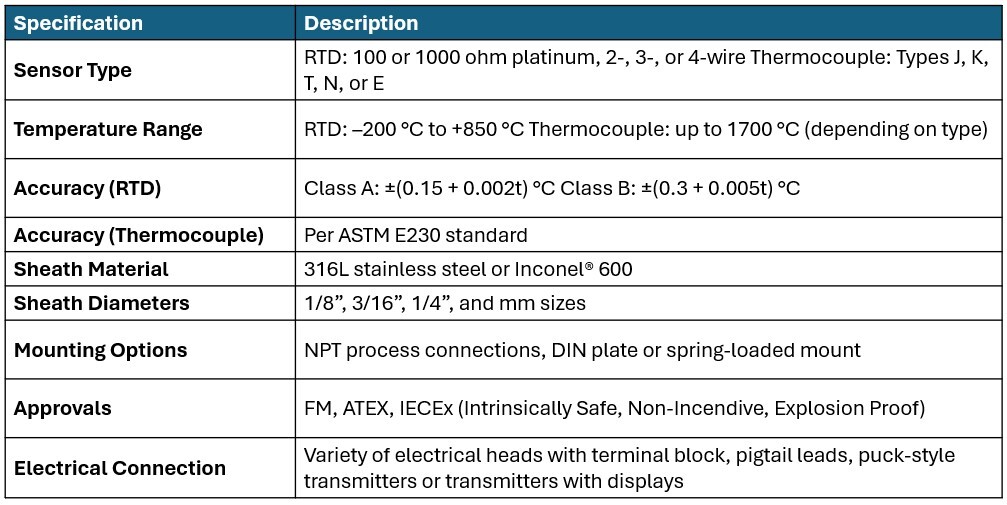

S50:

Sheath Diameter: 1∕8 in., 3∕16 in., 1∕4 in., 3 mm, 4.5 mm, 6 mm, 8 mm

Stem Length: Minimum: 50 mm/2 in., Maximum: 3 m/120 in.

Sensor Type & Measuring Range:

RTDs Platinum 385:
Pt 100 –200 to +600°C
Pt 1000 –40 to +600°C

Thermocouples:
Type J –40 to +750°C
Type E –200 to +800°C
Type K –200 to +1000°C
Type N –200 to +1000°C

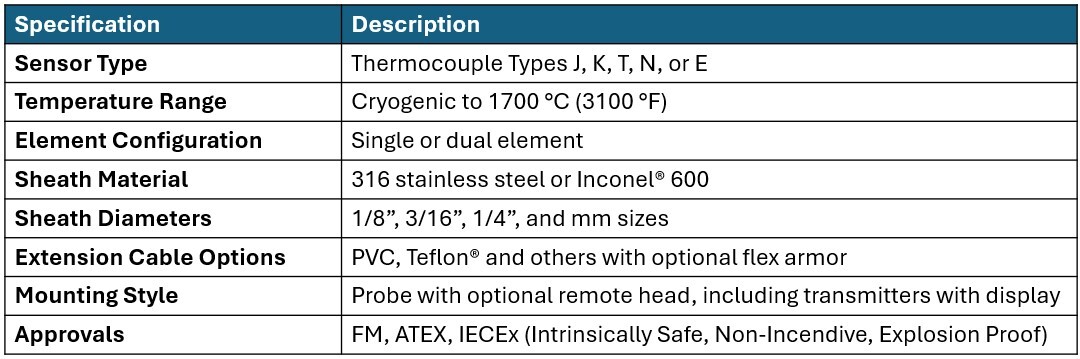

S80:

Insert Stem Diameter: 1∕8 in., 3∕16 in., 1∕4 in., 3 mm, 4.5 mm, 6 mm, 8 mm

Stem Length: Minimum: 50 mm/2 in., Maximum: 3 m/120 in.

Sensor Type & Range:

Thermocouples:
Type J –40 to +750°C
Type E –200 to +800°C
Type K –200 to +1000°C
Type N –200 to +1000°C

S81:

Sheath Stem Diameter: 1/8 in., 3/16 in., 1/4 in., 3 mm, 4.5 mm, 6 mm, 8 mm

Stem Length: Minimum: 50 mm/2 in., Maximum: 3 m/120 in.

Sensor Type & Measuring Range:

RTDs Platinum 385 Curve:
Pt 100 –200 to +600°C
Pt 1000 –40 to +600°C

Industries and Applications

These assemblies are custom designed to work well in nearly every industry or application, including:

  • Chemical and petrochemical plants
  • Refineries
  • Utilities
  • Food and beverage
  • Pharmaceutical and biotech
  • Power generation
  • Reactors
  • Storage tanks
  • Cooling towers
  • HVAC/R
  • Oil and gas

Other Features

Some of the positive aspects of this collection of products are flexible designs to work in most applications, including hazardous locations, as well as fast response times.

Ashcroft also offers competitive pricing and lead times for these instruments.

Wrap-Up

Ashcroft’s new custom RTDs and thermocouples are great options for any of your applications requiring temperature measurements. With a diverse selection of probes, you can certainly find what you need to meet your specifications.

Check out the data sheets and the product pages on our website for all the specifications and more information on Ashcroft Types S50, S80 and S81 RTD and thermocouple probes.

And for more information on temperature instruments, check out our past articles:

Feel free to reach out to our temperature specialists here at Ashcroft to answer all of your temperature measurement questions!

You can also view this brochure to see all of our RTD and Thermocouple probe options:RTD and Thermocouple temperature probes
