Why Use Tri-Clamp Fittings for Hygienic Applications?

In industries such as pharmaceutical, food, dairy and biotech, contamination is one of the greatest threats to product quality, safety and compliance. Even the smallest bacterial buildup in process connections can lead to costly downtime, product recalls and regulatory violations. The challenge is keeping the entire process environment ultra-clean and secure—especially at connection points where contamination can quickly occur.

Tri-Clamp® fittings provide a proven solution, using a sanitary, crevice-free design that’s easy to clean, quick to assemble and fully compliant with industry regulations.

As a leader in pressure and temperature instrumentation, Ashcroft has been trusted for over a century to deliver trusted instrumentation for critical process applications. Our expertise in hygienic measurement, combined with our conventional or inline style Tri-Clamp connections, helps manufacturers maintain sterility while keeping operations efficient.

In this article, you’ll discover why Tri-Clamp connections are preferred for hygienic processes, how they outperform threaded fittings in sterile environments, and the best practices for selecting and installing gaskets to ensure long-term reliability.

Why Tri-Clamp Connections Are Ideal for Hygienic Processes

In hygienic environments, every connection point is a potential source of contamination. Traditional threaded fittings have gaps and grooves where microorganisms can collect, making complete cleaning difficult.

Tri-Clamp fittings solve these challenges with:

• Polished, seamless surfaces that inhibit microbial growth.
• No threads or dead legs, eliminating hidden areas where contaminants can accumulate.
• High-performance compression gaskets that deliver a reliable, leak-tight seal under both pressure and vacuum conditions.

• Tool-free assembly for fast inspection, cleaning or part replacement.

The design ensures that Clean-in-Place (CIP) and Steam-in-Place (SIP)  systems can reach all wetted surfaces to maintain sterility throughout the production process.

Benefits of Tri-Clamp Connections for Pharmaceutical and Biotech Applications

For pharmaceutical and biotech manufacturers, sterility is both required and regulated. Tri-Clamp fittings, including those found in the Ashcroft® 1032 Sanitary Pressure Gauge,  Ashcroft® 2030 Series Digital Sanitary Pressure Gauge,  the A-Series Switch and the E2 Sanitary Pressure Transducer, align with the following guidelines to ensure regulatory compliance with industry standards:

• 3-A Sanitary Standards, Inc. (3-A)
• Good Manufacturing Practices (GMP)
• Food and Drug Administration (FDA)
• The American Society of Mechanical Engineers (ASME) BPE

In addition to regulatory compliance, other benefits include:

• Material traceability. 316L stainless steel and Hastelloy® C276 with heat lot certifications ensure every wetted component can be traced back to its original production batch. This is essential for meeting audit requirements, demonstrating material compliance and ensuring corrosion resistance over the life of the process equipment.


• CIP/SIP compatibility. Tri-Clamp assemblies withstand the heat, pressure, and chemical exposure of automated Clean-in-Place and Steam-in-Place sterilization cycles. This eliminates the need for time-consuming disassembly and manual cleaning, reducing labor and helping maintain continuous production.


• Fast turnover between production runs. Quick-release clamps enable rapid replacement of instruments or gaskets between production batches. This minimizes downtime, which is especially valuable in high-demand pharmaceutical manufacturing.


• Reduced contamination risk compared to threaded or flanged fittings. The smooth, crevice-free design of Tri-Clamps eliminates threads, gaps, and dead legs where bacteria can grow, greatly reducing the risk of batch loss and safeguarding patient safety.

Benefits of Tri-Clamp Connections for Food and Dairy Processing

The same design features that make Tri-Clamps ideal for pharmaceuticals also apply to food and dairy processing. In these industries, taste, quality and shelf life all depend on controlling microbial contamination.

Tri-Clamp connections:

• Eliminate crevices where food particles could lodge
• Allow quick disassembly for washdowns
• Support high-temperature sanitizing without degrading gasket materials
• Available in electropolished finishes (15 Ra or better) to exceed USDA and 3-A sanitary requirements

For dairies, breweries and food manufacturers, these fittings maintain product integrity while reducing the time and labor needed for cleaning.

Selecting the Right Tri-Clamp Gasket Material

A Tri-Clamp fitting is only as sanitary as its gasket. The gasket material should match your process media, temperature range, and cleaning method. Common FDA- and USP Class VI–compliant options include EPDM, Silicone and PTFE. See the chart below to compare key features.

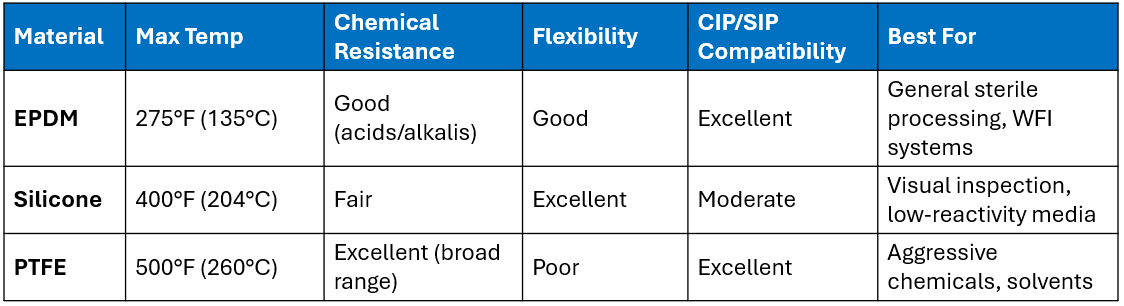

Figure 1. Compatible gasket materials

Installing Tri-Clamp Connections

Installing a Tri-Clamp connection is a straightforward process used to join sanitary fittings in industries like brewing, distilling and food processing, and pharmaceuticals. Proper installation is essential to maintain a sterile seal and prevent contamination.

What you’ll need:

• Tri-Clamp ferrules, already welded or attached to both tube or pipe ends
• Tri-Clamp gasket, typically silicone, EPDM, or PTFE, chosen based on your process requirements
• Tri-Clamp to secure the connection (instrument to process line)

How to install:

1. Prepare and clean components. Sanitation is critical in hygienic processes. Thoroughly clean and dry the ferrules, gasket, and clamp to remove any debris, residues, or moisture before assembly.
2. Position the gasket. Place the gasket into the groove of one ferrule.
3. Align the ferrules. Bring the second ferrule into position so it sits flush against the gasket with no visible gap other than the gasket thickness.
4. Open the clamp. Loosen the wingnut and open the clamp fully so it can wrap around both ferrules.
5. Secure the connection. Wrap the clamp around the aligned ferrules, making sure it’s centered evenly on the gasket.
6. Tighten the clamp. Close the clamp and hand-tighten the wingnut until the connection feels secure. Use a wrench only if needed—over-tightening can deform the gasket or damage the ferrules.
7. Inspect the seal. Check for even gasket compression and confirm there are no visible gaps.
8. Leak test if required. For pressurized systems, perform a safe leak test (with water or air) before bringing the system online.

Following these steps will ensure a secure, leak-free Tri-Clamp connection that meets sanitary requirements from the start.

Best Practices for Installing and Maintaining Tri-Clamp Connections

Even the best Tri-Clamp fitting can fail if installed or maintained incorrectly. The flat, polished metal ends that join together in a Tri-Clamp connection (ferrules) must be properly matched, sealed and tightened to ensure a leak-free, sanitary fit. Follow these guidelines for reliable, hygienic service:

• Match clamp sizes exactly to the Tri-Clamp Tube OD needed. You can use multiple size Tri-Clamps as replacements if the OD is the same to ASME BPE. However, you would need to swap the gaskets to the new Tri-Clamp dimension.
• Select the right gasket material for your process media and cleaning method
• Inspect ferrule faces for scratches or dents that could trap contaminants
• Torque clamps evenly to avoid gasket distortion
• Replace gaskets regularly, especially after high-temperature sterilization cycles

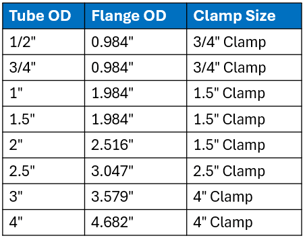

Figure 2. Tri-Clamp Ferrule Size Chart

Ready to learn more?

Now you know why Tri-Clamp fittings are the gold standard for hygienic process connections in pharmaceutical, biotech, food and dairy industries. Their smooth, sanitary design minimizes contamination risk, supports quick cleaning and meets the most stringent industry standards.

When combined with a high-performance instrument like the Ashcroft® 1032 Sanitary Pressure Gauge,  Ashcroft® 2030 Series Digital Sanitary Pressure Gauge,  the A-Series Switch and the E2 Sanitary Pressure Transducer, Tri-Clamp connections provide both process integrity and peace of mind.
